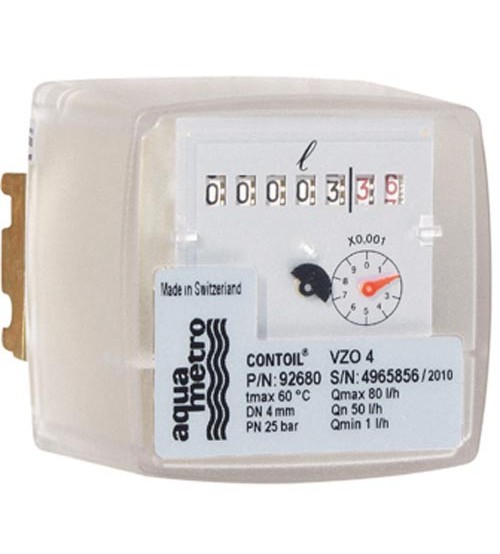

Aquametro VZO 4 Akaryakıt Sayacı

VZO 4

CONTOIL® fuel oil meter

Measuring range 1 - 80 l/h

Measuring principle: Ring piston

Nominal pressure: PN 25 bar

Nominal diameter: DN 4 mm

with internal thread

for copper pipe connection:1/8´´

Installation position: horizontal/

vertical pipe

Max. flow rate (Qmax): 80 l/h

Max. continuous flow rate

(Qcont): 50 l/h

Min. flow rate (Qmin): 1 l/h

Max. temperature: 60°C

Registration capacity: 100'000 l

Min. readable amount: 0.001 l

Max. deviation:

1 – 2 l/h ± 2.5 % of value

2 – 80 l/h ± 1 % of value

Repeatability: ± 0.2 %

Built-in safety filter: 0.125 mm
